Aramid fabrics

Aramid fabrics, also known under the trade name Kevlar® or Nomex®, are heat resistant up to +/- 250°C. They allow the thermal and sound insulation of materials used in several fields and their use is very widespread in ballistic applications.

Aramid fabric is composed of fibers that maintain excellent mechanical properties at high temperatures. They can replace glass fibers and metal and find their applications in tires, ropes, bulletproof vests and special materials intended for industry.

Points forts
  • Low thermal expansion
  • High tensile strength
  • Good chemical and abrasion resistance
  • Great strength
Applications
  • Aeronautics/Aerospace
  • Shipbuilding/Military/Ballistics
  • Automotive (Belts…)
  • Sport/Ski slope/Boating

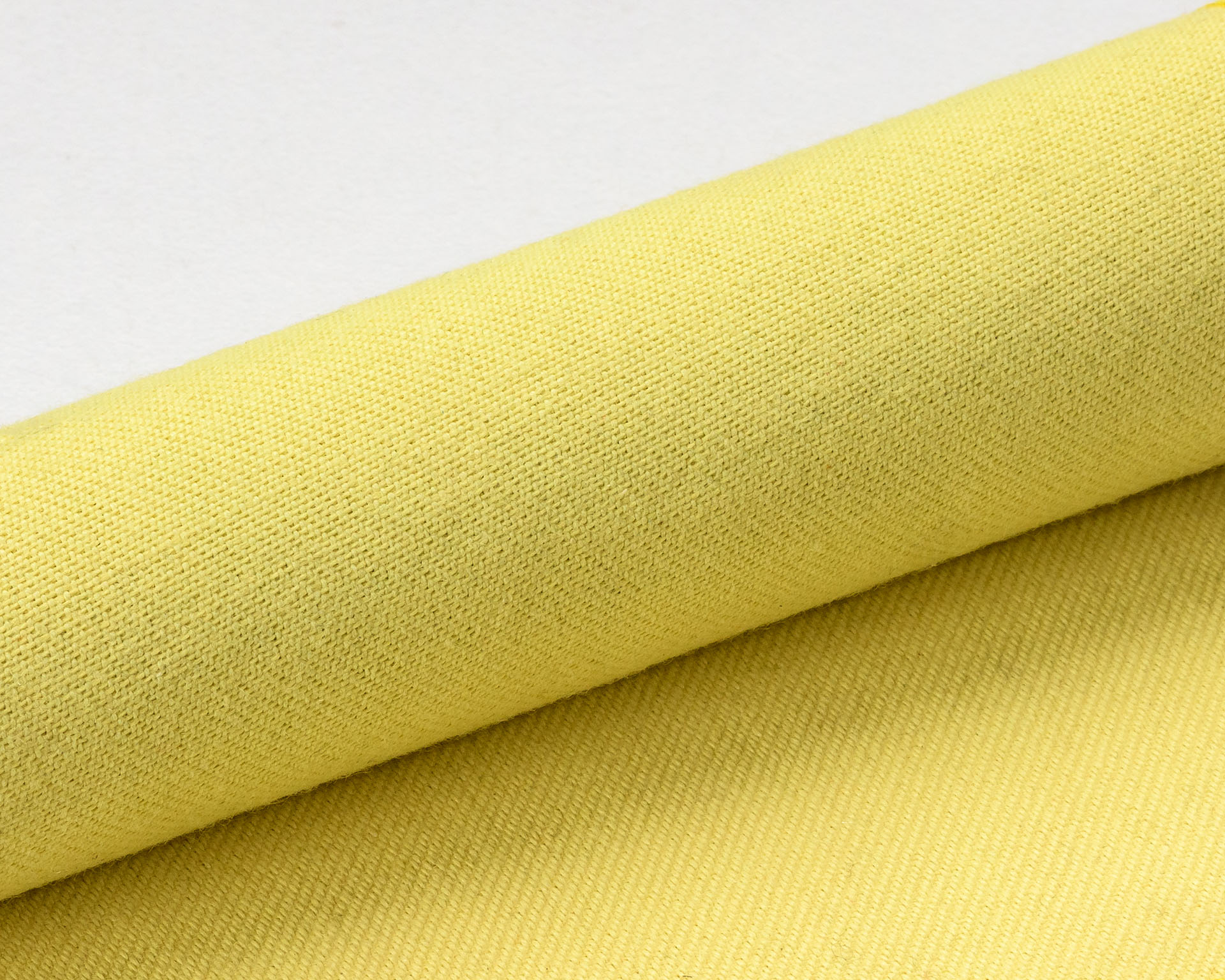

Aramid fabrics woven in plain weave

Composition : 100 % para-aramid.

IDCompositionWeight (g/m²)Width (mm)Length (ml)ArmorThickness (mm)Pictures
TA220100% KEVLAR220100050Twill 2 / 10.6
TA325100% PARA-ARAMIDE "virgin"325100050Twill 3 / 10.75

Regenerated aramid fabrics

Composition : 100 % regenerated para-aramid

IDCompositionWeight (g/m²)Width (mm)Length (ml)ArmorThickness (mm)Pictures
TA370100% regenerated para-aramid370155050Chevron1.4
TA480100% regenerated para-aramid480100050Twill 2 / 21.25
TA600100% regenerated para-aramid600100050Twill 2 / 21.75

Preox/aramid fabrics

Pre-ox and aramid fabrics for protective applications

IDCompositionWeight (g/m²)Width (mm)Length (ml)ArmorThickness (mm)Pictures
TPA24070% PREOX / 30% PARA-ARAMIDE240155050Twill 2 / 20.55
TPA40070% PREOX / 30% PARA-ARAMIDE400155050Twill 2 / 21.00
TPA64070% PREOX / 30% PARA-ARAMIDE640100050Taffetas1.5

Silicone coated aramid fabrics

Aramid fabrics coated with a silicone coating on one or both sides provide resistance and waterproofing to water and air.

IDCompositionWeight (g/m²)Width (mm)Length (ml)ArmorThickness(mm)Pictures
TA1200-2-SIREGENERATED PARA ARAMID + 2 BLACK SILICONE SIDES1200100050Twill 2/21.9

Polyurethane coated aramid fabrics

These aramid fabrics have a polyurethane coating applied to their surface in order to modify their technical characteristics and appearance. The coating gives them the following characteristics: stain resistance, waterproofing, abrasion resistance, antistatic, etc.

IDCompositionWeight (g/m²)Width (mm)Length (ml)ArmorThickness(mm)Pictures
TA560-1-PUREGENERATED PARA ARAMID + 1 GRAY POLYURETHANE SIDE560100050Twill 2/21.25

Aluminized aramid fabrics

Aluminized aramid fabrics are intended for making protective clothing and thermal insulation, for example.

IDCompositionWeights (g/m²)width (mm)Length (ml)ArmorThickness(mm)Picture
TA470-1-ALREGENERATED PARA ARAMID + 1 ALUMINUM SIDE460150050Chevron1.1
TA690-1-ALPARA ARAMIDE REGENERE + 1 FACE ALUMININIUM690100050Twill 2 /21.65
TA550-2-ALREGENERATED PARA ARAMID + 2 ALUMINUM SIDES550150050Chevron1.1
TPA480-1-AL70% PREOX/30% PARA ARAMID + 1 ALUMINUM SIDE480150050Twill 2 / 20.9
TPA730-1-AL30% PARA ARAMID + 1 ALUMINUM SIDE730100050Taffetas1.4
